It is well known that the best feature of circuit boards is to allow complex circuit layouts in constrained Spaces. However, when it comes to OEM PCBA(Original equipment manufacturer Printed Circuit board Assembly) design, specifically controlled impedance, engineers have to overcome several limitations and challenges. Next, this article will reveal the limitations of designing a Rigid-Flex PCB with a controlled impedance.

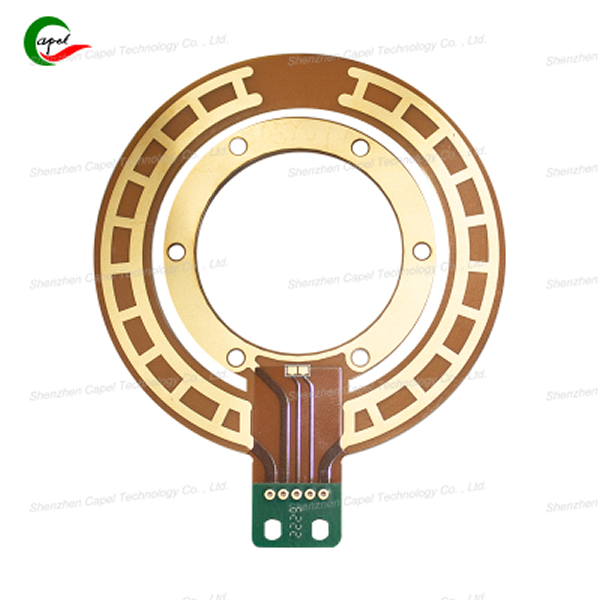

Rigid-Flex PCB Design
Rigid-Flex PCBs are a hybrid of rigid and flexible circuit boards, integrating both technologies into a single unit. This design approach allows for greater flexibility in applications where space is at a premium, such as in medical devices, aerospace, and consumer electronics. The ability to bend and fold the PCB without compromising its integrity is a significant advantage. However, this flexibility comes with its own set of challenges, particularly when it comes to impedance control.
Impedance Requirements of Rigid-Flex PCBs
Impedance control is crucial in high-speed digital and RF (Radio Frequency) applications. The impedance of a PCB affects signal integrity, which can lead to issues such as signal loss, reflections, and crosstalk. For Rigid-Flex PCBs, maintaining a consistent impedance throughout the design is essential to ensure optimal performance.
Typically, the impedance range for Rigid-Flex PCBs is specified between 50 ohms and 75 ohms, depending on the application. However, achieving this controlled impedance can be challenging due to the unique characteristics of Rigid-Flex designs. The materials used, the thickness of the layers, and the dielectric properties all play a significant role in determining the impedance.
Limitations of Rigid-Flex PCB Stack-Up

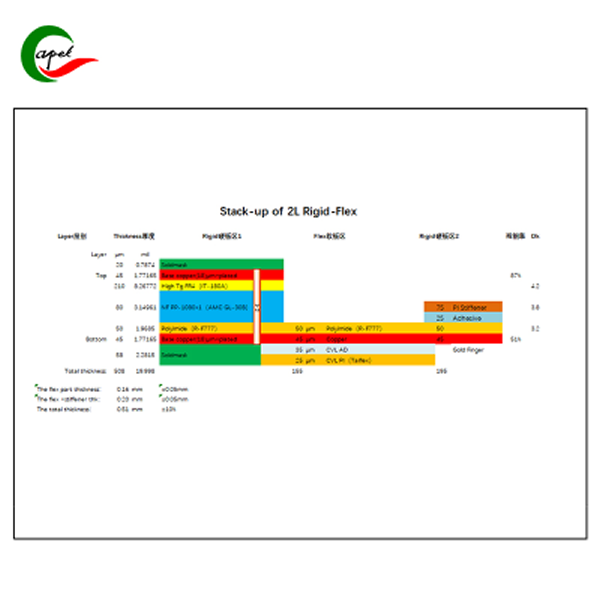

One of the primary limitations in designing Rigid-Flex PCBs with controlled impedance is the stack-up configuration. The stack-up refers to the arrangement of layers in the PCB, which can include copper layers, dielectric materials, and adhesive layers. In Rigid-Flex designs, the stack-up must accommodate both rigid and flexible sections, which can complicate the impedance control process.
1. Material Constraints
The materials used in Rigid-Flex PCBs can significantly impact impedance. Flexible materials often have different dielectric constants compared to rigid materials. This discrepancy can lead to variations in impedance that are difficult to control. Additionally, the choice of materials can affect the overall performance of the PCB, including thermal stability and mechanical strength.
2. Layer Thickness Variability
The thickness of the layers in a Rigid-Flex PCB can vary significantly between the rigid and flexible sections. This variability can create challenges in maintaining a consistent impedance throughout the board. Engineers must carefully calculate the thickness of each layer to ensure that the impedance remains within the specified range.
3. Bend Radius Considerations
The bend radius of a Rigid-Flex PCB is another critical factor that can affect impedance. When the PCB is bent, the dielectric material can compress or stretch, altering the impedance characteristics. Designers must account for the bend radius in their calculations to ensure that the impedance remains stable during operation.
4. Manufacturing Tolerances
Manufacturing tolerances can also pose challenges in achieving controlled impedance in Rigid-Flex PCBs. Variations in the manufacturing process can lead to inconsistencies in layer thickness, material properties, and overall dimensions. These inconsistencies can result in impedance mismatches that can degrade signal integrity.
5. Testing and Validation
Testing Rigid-Flex PCBs for controlled impedance can be more complex than traditional rigid or flexible PCBs. Specialized equipment and techniques may be required to accurately measure impedance across the various sections of the board. This added complexity can increase the time and cost associated with the design and manufacturing process.
