Rigid-Flex PCB Assembly: A Comprehensive Guide to Manufacturing and Applications

Rigid-flex PCB assembly is an innovative and versatile technology that combines the advantages of rigid and flexible printed circuit boards (PCBs). This article aims to provide a comprehensive guide to rigid-flex PCB assembly, highlighting its manufacturing process, design considerations, applications and benefits.

What is rigid-flex board assembly?

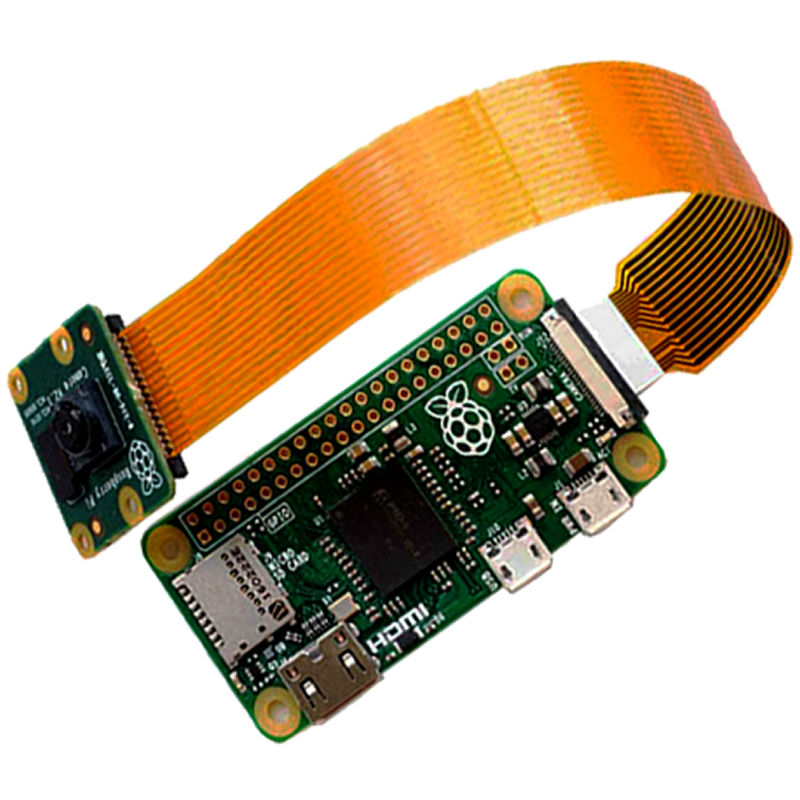

Rigid-flex PCB assembly involves integrating rigid and flex PCBs into one unit. It enables the creation of complex three-dimensional (3D) circuits in a compact and efficient manner. The rigid part provides stability and support, while the flexible part allows bending and twisting.

Manufacturing process of Rigid-Flex board assembly:

The manufacturing process for rigid-flex PCB assembly typically involves multiple steps. These include PCB design, material selection, circuit fabrication, component assembly, testing and final inspection. Use specialized equipment and techniques to ensure reliable bonding between rigid and flexible parts.

The first step is to design the PCB layout. This includes determining the placement of components and traces on both rigid and flexible portions of the board.

Material Selection: Selecting the correct material is critical to board reliability and flexibility. This includes the choice of rigid substrates such as FR4 and flexible materials such as polyimide or polyester.

Circuit Fabrication: The PCB fabrication process involves multiple steps including cleaning, applying copper layers, etching to create circuit traces, adding solder mask and silkscreening for component identification. The process is performed separately for the rigid and flexible portions of the board.

Component Assembly: Components are then mounted to the rigid and flexible sections of the board using Surface Mount Technology (SMT) or Through Hole Technology (THT). Special care is taken to ensure that components are properly and securely placed on both rigid and flexible components.

Bonding: The bonding process is critical to ensure a reliable connection between the rigid and flexible parts of the board. Use adhesives, heat, and pressure to firmly bond the pieces together. For this purpose, specialized equipment and techniques are used, such as the use of laminators or controlled heating.

Testing: After assembly, the boards are thoroughly tested to ensure functionality and reliability. This includes electrical testing, functional testing, and possibly environmental testing to verify the performance of the rigid-flex board under different conditions.

Final Inspection: A final inspection is performed to check the quality of the assembly and ensure that there are no defects or problems in the finished product. This step involves visual inspection, dimensional measurements, and any other testing required for the application.

Key design considerations for rigid-flex PCBs:

Designing a rigid-flex PCB requires careful consideration of various factors such as bend radius, layer stackup, flex area placement, and component placement. Proper design techniques ensure optimal functionality and reliability of the final product.

Bending Radius: Rigid-flex boards are allowed to bend and fold, but they have a minimum bend radius that should not be exceeded. The bend radius is the smallest radius a board can bend without damaging the circuit or causing mechanical stress. When designing the layout of components and traces, it is important to consider the bend radius of the flex areas to ensure their integrity during bending.

Layer Stack: Layer stack refers to the arrangement of the different layers of the PCB. In a rigid-flex PCB, there are usually rigid and flexible layers. The stackup must be carefully planned to ensure proper bonding between rigid and flexible parts and to provide adequate electrical performance while meeting bending and folding requirements.

Flex Area Layout: The flex area of a rigid-flex PCB is the area where bending or flexing will occur. These areas should be strategically placed to avoid interference with components, connectors, and mechanical structures. It is important to consider the orientation and location of flexible areas to minimize stress on critical components during operation.

Component placement: The placement of components on a rigid-flex PCB should be carefully planned to avoid interfering with the flex area and to account for any movement during bending. Critical components should be placed in rigid parts, while less sensitive components can be placed in flexible parts. Component placement should also consider the thermal performance of the board and the potential ability to dissipate heat.

Signal Integrity: Rigid-flex PCBs often require careful consideration of signal integrity. Bending and flexing of the PCB can cause impedance mismatches, signal reflections and crosstalk issues. It is important to consider trace routing and impedance control to maintain signal integrity throughout the board.

Mechanical Constraints: Mechanical constraints such as resistance to shock, vibration, and thermal expansion need to be considered during the design phase. The rigid and flexible parts of the board should be designed to withstand these mechanical stresses without compromising the integrity of the circuit.

Manufacturing constraints: Design for manufacturability is critical to the successful manufacture of rigid-flex PCBs. Factors such as minimum trace width, via location, copper density, and manufacturing tolerances should be considered to ensure that the design is achievable within manufacturing capabilities and constraints.

Advantages of rigid-flex boards:

Rigid-flex PCBs offer several advantages over traditional rigid or flex PCBs. These include reduced size and weight, improved reliability, enhanced signal integrity, increased design flexibility, and simplified assembly and test processes.

Reduced size and weight: Rigid-flex PCBs allow the integration of rigid and flexible parts within a single board, eliminating the need for connectors and interconnecting cables. Fewer components and wiring make the overall product smaller and lighter.

Improved reliability: Rigid-flex PCBs have higher reliability compared to traditional PCBs. The elimination of connectors and interconnecting cables reduces the likelihood of failure due to loose connections or broken wires. Additionally, the flexible portion of the board can withstand bending and flexing without compromising the integrity of the circuit.

Enhanced Signal Integrity: Integrating rigid and flexible parts on a single board minimizes the need for additional interconnects and reduces signal loss and interference. Shorter signal paths and reduced impedance discontinuities improve signal quality and integrity.

Increased design flexibility: Rigid-flex PCBs offer designers greater flexibility in form factor and component placement. The ability to bend and fold circuit boards enables more compact and creative designs, allowing engineers to fit more functionality into less space.

Simplified assembly and testing process: Rigid-flex PCBs simplify the assembly process by reducing the number of components and interconnects required. This enables faster and more efficient assembly. Additionally, eliminating connectors reduces the chance of misalignment or connection issues during assembly. A simplified assembly process means lower costs and faster time to market.

Common applications of rigid-flex PCB assembly:

Rigid-flex PCB assemblies are used in a wide variety of industries, including medical devices, aerospace, automotive, consumer electronics, and more. It is ideal for applications requiring compact and reliable electronics in challenging environments.

Medical Devices: Rigid-flex PCB assemblies are commonly used in medical devices such as pacemakers, insulin pumps, and wearable health monitors. These devices require small size, durability and flexibility to withstand motion and physical contact. Rigid-flex technology enables compact and reliable integrated circuits in medical devices.

Aerospace: Rigid-flex PCB assemblies are suitable for aerospace applications where weight reduction, space constraints and reliability are key factors. They are used in aircraft avionics systems, communications equipment, navigation systems and control panels. Rigid-flex technology enables lighter, more compact electronic systems in aerospace applications.

Automotive: Automotive applications require rugged and reliable electronics that can withstand vibration, temperature changes, and mechanical stress. Rigid-flex PCB assemblies are used in automotive control units, advanced driver assistance systems (ADAS), infotainment and engine management systems. Rigid-flex technology ensures a space-saving design and increases durability.

Consumer Electronics: Rigid-flex PCB assemblies are widely used in various consumer electronic devices such as smartphones, tablets, wearable devices and game consoles. The compact and flexible nature of rigid-flex PCBs enables higher performance, improved design aesthetics, and a better user experience. They enable manufacturers to create thinner, lighter, and more functional devices.

Industrial Equipment: In industrial equipment where reliability and durability are critical, rigid-flex PCB assemblies are used in control systems, robotics, power management, and data acquisition. The combination of rigid and flexible sections enables efficient use of space, reduces wiring, and increases resistance to harsh operating conditions.

Tips for successful rigid-flex PCB assembly:

To ensure successful rigid-flex PCB assembly, best practices must be followed, such as selection of the correct manufacturer, proper material handling and storage, effective thermal management, and thorough testing and inspection procedures.

Choose a reputable manufacturer: Choosing the right manufacturer is critical to successful rigid-flex PCB assembly. Look for a manufacturer with experience producing rigid-flex PCBs and a track record of delivering high-quality products. Consider their expertise, manufacturing capabilities, certifications, and customer reviews.

Understand the design requirements: Familiar with the design requirements of rigid-flex boards. This includes understanding mechanical and electrical constraints such as bend and fold requirements, component placement and signal integrity considerations. Work closely with your PCB designer to ensure designs are optimized for fabrication and assembly.

Proper Material Handling and Storage: Rigid-flex boards can easily be damaged by mishandling and improper storage. Make sure the manufacturer follows proper material handling procedures, including protecting flexible areas from excessive bending or stress. Also, store rigid-flex boards in a controlled environment to prevent moisture absorption or exposure to high temperatures.

Effective thermal management: Rigid-flex PCB assemblies may have components that generate heat. Proper thermal management is critical to ensure reliable operation and prevent solder joint failures. Consider techniques such as thermal vias, heat spreaders, or thermal pads to effectively manage heat dissipation. Work with the manufacturer to optimize the design for efficient thermal management.

Thorough testing and inspection: Rigorous testing and inspection are required to identify any issues during assembly and ensure the reliability of the final product. Implement a comprehensive testing protocol including electrical testing, functional testing and reliability testing. Perform a thorough visual inspection to detect any flaws or anomalies in the assembly.

Collaborate with Manufacturers: Maintain open communication and work closely with manufacturers throughout the assembly process. Discuss design considerations, manufacturing requirements and any specific issues. Periodically review and approve prototypes or samples to ensure that your expectations are met. This collaborative approach will help resolve any potential issues early on and ensure a successful rigid-flex PCB assembly.

Challenges and limitations of rigid-flex PCB assembly:

While rigid-flex PCB assembly has many advantages, it also presents challenges and limitations. These include higher manufacturing costs, increased design and manufacturing complexity, limited availability of specialized manufacturing equipment, and a higher risk of manufacturing defects.

Higher manufacturing costs: Rigid-flex PCB assemblies tend to be more expensive than traditional rigid PCB assemblies due to the additional material required, specialized manufacturing processes, and higher complexity. The cost of rigid-flex PCB fabrication and assembly should be carefully considered and budgeted in the project.

Increased design and manufacturing complexity: Due to the combination of rigid and flexible materials, the design of rigid-flex PCBs requires expertise and experience. The design process is more complex as it involves bending, folding and positioning of components. Manufacturing processes such as lamination, drilling and welding also become more complex due to the combination of materials and structures.

Limited Availability of Dedicated Manufacturing Equipment: Rigid-flex PCB assembly may require specialized manufacturing equipment that not all manufacturers have. The availability of such equipment may be limited, which may result in longer lead times or the need to outsource production to specialized facilities. It is important to ensure that the selected manufacturer has the equipment and capabilities required for efficient rigid-flex PCB assembly.

Higher Risk of Manufacturing Defects: The complexity of rigid-flex PCB assemblies creates a higher risk of manufacturing defects compared to traditional rigid PCB assemblies. Flex areas and delicate interconnects are more susceptible to damage during manufacturing and assembly. Extra care must be taken during handling, soldering and testing to minimize the risk of defects.

Testing and inspection challenges: Rigid-flex PCB assemblies can be more challenging to test and inspect due to the combination of rigid and flexible areas. Traditional testing methods such as flying probe or bed of nails testing may not be suitable for complex rigid-flex designs. Custom testing and inspection methods may be required, adding complexity and cost to the manufacturing process.

Despite these challenges and limitations, rigid-flex PCB assemblies offer unique advantages in terms of space savings, reliability, and durability, making them the first choice for applications with specific requirements. These challenges can be effectively addressed by working closely with an experienced manufacturer and careful consideration of design and manufacturing considerations, resulting in a successful rigid-flex PCB assembly.

Rigid-flex PCB assembly is a powerful technology that can be used to create innovative and compact electronic devices. Its unique features and benefits make it ideal for a wide variety of applications across industries. However, careful consideration of the design, manufacturing and assembly process is critical to ensure a successful implementation. In conclusion, understanding the manufacturing process, design considerations, applications, advantages and limitations of rigid-flex PCB assembly is essential for engineers, designers and manufacturers. By harnessing the power of this advanced technology, cutting-edge and reliable electronics can be developed to meet the demands of today’s rapidly evolving industries.Shenzhen Capel Technology Co., Ltd.established its own rigid flex pcb factory in 2009 and it is a professional Flex Rigid Pcb Manufacturer. With 15 years of rich project experience, rigorous process flow, excellent technical capabilities, advanced automation equipment,comprehensive quality control system, and Capel has a professional experts team to provide global customers with high-precision, high-quality 1-32 layer rigid flex board, hdi Rigid Flex Pcb, Rigid Flex Pcb Fabrication, rigid-flex pcb assembly,fast turn rigid flex pcb assembly,quick turn pcb assembly prototypes.Our responsive pre-sales and after-sales technical services and timely delivery enable our clients to quickly seize market opportunities for their projects.
