In today’s technologically advanced world, industries are constantly evolving and innovating, and aerospace is no exception. With the growing demand for high-performance and reliable electronic systems, there is a need for precision circuit boards that can withstand the rigorous demands of aerospace applications. One such solution that has received much attention is a Capel double layer flexible PCB with a length of 2m. This breakthrough technology has revolutionized the way aerospace electronic systems are designed and manufactured.
The product type 2-layer flexible circuit board is the backbone of this technology. These boards have been carefully designed to provide maximum flexibility, allowing them to be bent and twisted without compromising their functionality. The use of advanced materials and manufacturing techniques ensures that these boards have excellent thermal and mechanical stability, making them highly reliable and suitable for the extreme conditions experienced in aerospace applications.
One of the main features of these double layer flexible PCB boards is the excellent line width and line spacing of 0.15/0.15mm. This thin line width allows for complex circuit designs, enabling the integration of more components in a limited space. Tight wire spacing ensures minimum signal interference and crosstalk, thus guaranteeing the best performance of the electronic system.
To further increase the reliability of these boards, the board thickness is 0.23mm. This thickness provides the perfect balance between flexibility and durability, ensuring that the board can withstand the mechanical stress and vibration found in aerospace applications without compromising its functionality.
An important aspect of any PCB board is its copper thickness, as it directly affects the conduction of electrical signals. The copper thickness of the double-layer flex PCB in question is 35um. This thickness can effectively conduct electrical signals and ensure the perfect operation of electronic systems in aerospace.
Another notable feature of these plates is the minimum hole diameter of 0.3mm. This small hole size facilitates precision drilling during manufacturing, enabling the insertion of various components with high precision. This ensures a tight fit and reliable connection, helping to improve the overall performance and longevity of the electronic system.
Flame retardancy is critical in aerospace applications to prevent fire hazards. The double-layer flexible PCB board meets strict flame-retardant standards (94V0), ensuring that it will not catch fire or spread flames in the event of an accident. This feature provides an extra layer of security, making these boards ideal for critical aerospace applications.
An immersion gold finish further enhances the performance and longevity of these boards. This electroplating process forms a protective layer over the exposed copper pads, preventing oxidation and ensuring a reliable connection. The immersion gold treatment also provides excellent solderability, making components easier to solder to the board during assembly.
To meet the specific requirements of aerospace applications, the two-layer flex PCB board is available in black resistance soldering color. This special process is not only aesthetically pleasing, but also improves the durability and lifespan of the board. Black also helps to identify and troubleshoot any potential problems during maintenance and repairs.
Stiffness is a key factor to consider in aerospace applications. The double-layer flex PCB board adopts FR4 (a glass fiber reinforced epoxy resin laminate) to increase rigidity and strength. This stiffness not only ensures optimal performance of the board, but also its structural integrity under severe vibration and mechanical stress.

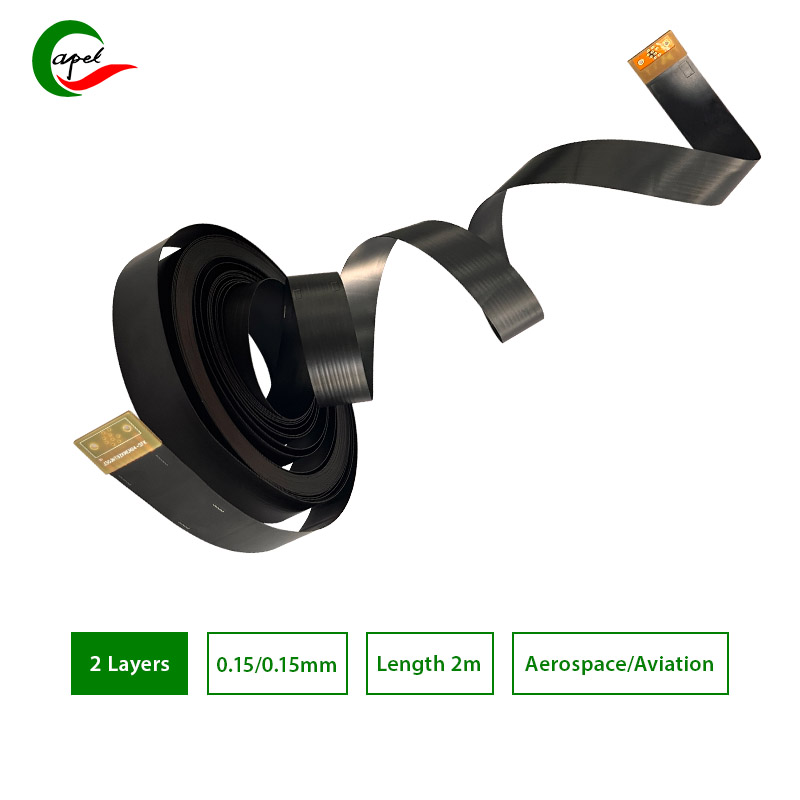

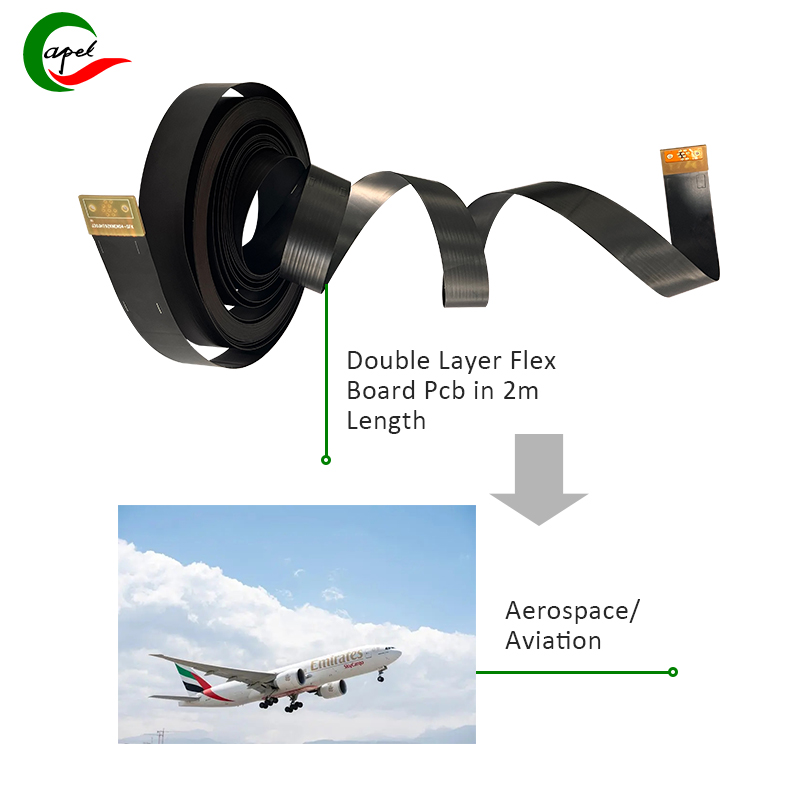

The length of 2m is unique to these double layer flex PCB boards. This extra-long length allows for increased flexibility and versatility in the design of complex electronic systems for aerospace applications. It provides ample space for integrating numerous components and ensures efficient routing of signals for higher performance and reliability.
The aerospace industry requires electronic systems that can withstand extreme conditions and function flawlessly without any compromises. The application of double-layer flexible PCB boards in aerospace technology provides an ideal solution. The unique combination of the above features make these boards perfect for aerospace.
Capel is a leading flexible circuit board manufacturer known for its expertise in producing high quality and innovative electronic solutions. Our wide range of services includes quick turn flex circuits, flex circuit prototyping and flex circuit assembly. Drawing on years of industry experience, Capel manufactures plates that meet the highest industry standards and meet the specific needs of the aerospace sector.
Capel’s 2m long double layer flexible PCB board is revolutionizing the aerospace industry by providing unparalleled technical support. These boards offer features such as excellent line width and space, board thickness, copper thickness, minimum aperture, flame resistance, surface finish, resistance weld colors, stiffness and special lengths to provide unmatched reliability and performance. Capel, with its expertise and extensive services, is at the forefront of manufacturing these cutting-edge sheets and advancing aerospace technology.
