PCB Rigid Flex With 2 layer For Car Gear stick
PCB Rigid Flex With 2 layer For Car Gear stick
  • PCB Rigid Flex With 2 layer For Car Gear stick
  • PCB Rigid Flex With 2 layer For Car Gear stick
  • PCB Rigid Flex With 2 layer For Car Gear stick
  • PCB Rigid Flex With 2 layer For Car Gear stick

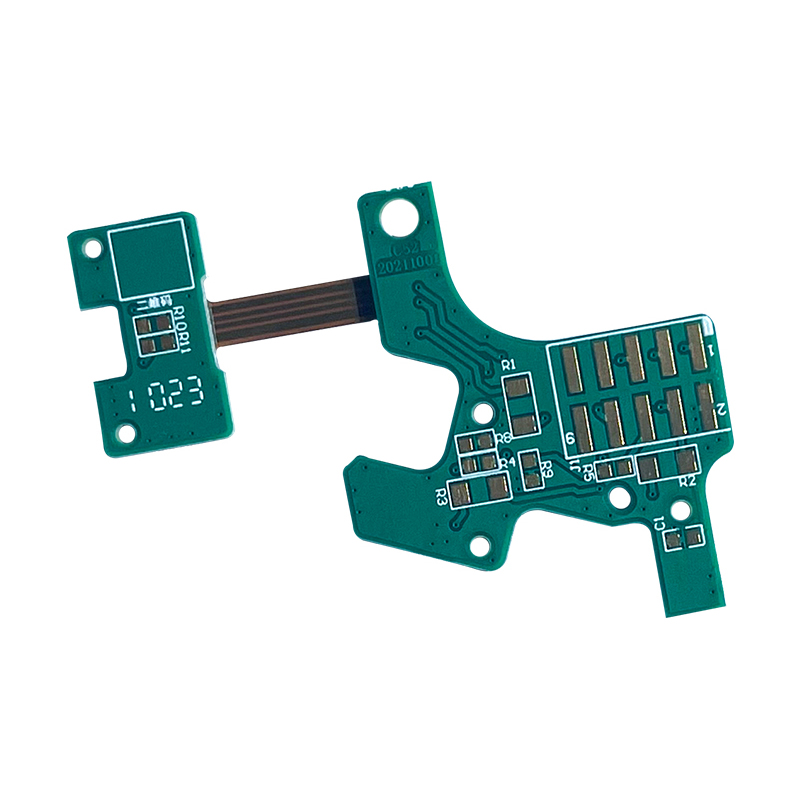

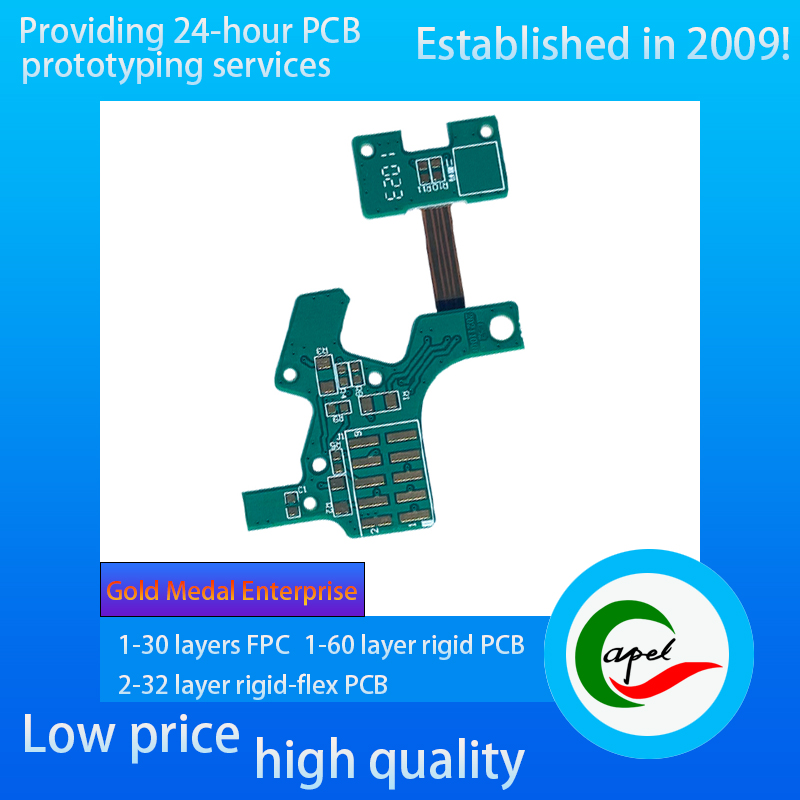

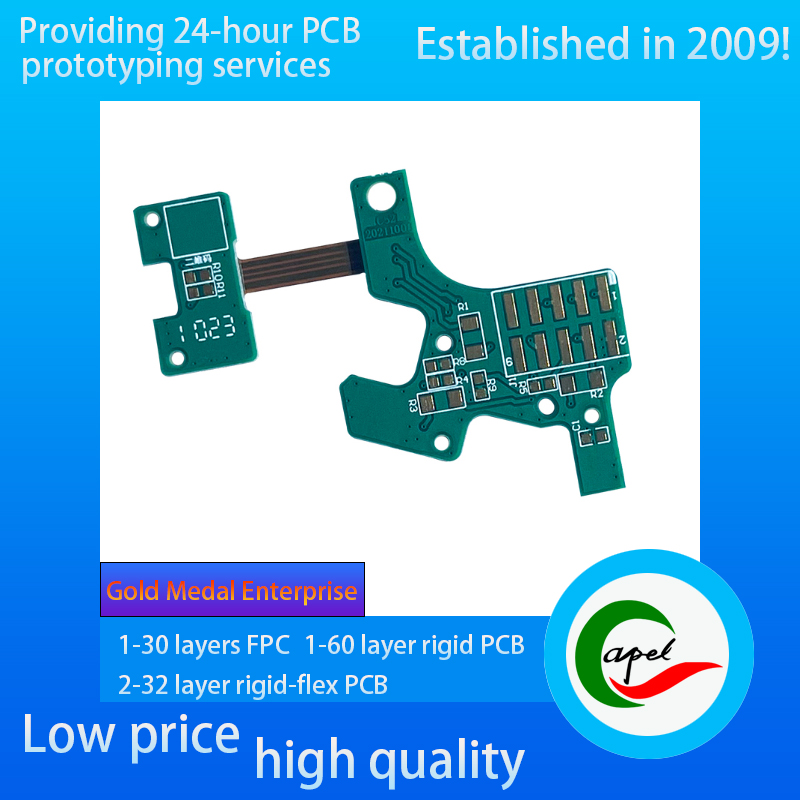

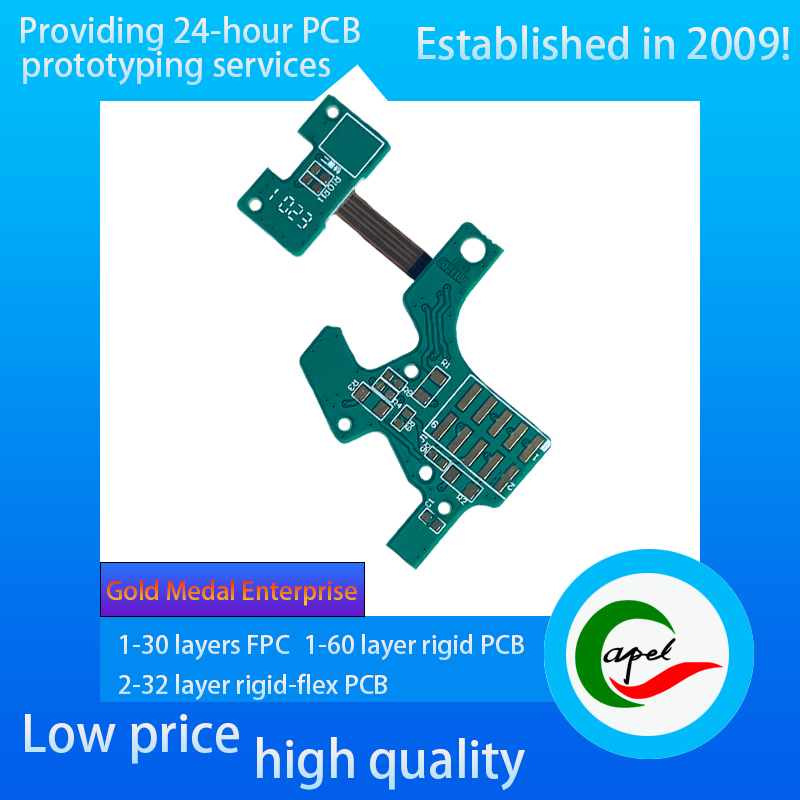

Short Description:

Product Type: 2 layer Flex-rigid PCB
Applications: Car
Material: PI,Copper,adhesive,FR4, solder mask
Line width and line spacing:0.2mm/0.25mm
Board thickness:1.5mm +/- 10%
Minimum hole:0.25mm
Surface Treatment:ENIG 2-3uin

Impedance:/

Tolerance tolerance:±0.1MM

Capel’s Service:

Support Custom 1-30 Layer FPC Flexible PCB,2-32 Layer Rigid-Flex Circuit Boards,1-60 Layer Rigid PCB,HDI PCB,Reliable Quick Turn PCB Prototyping,Fast Turn SMT PCB Assembly

Industry We Service:

Medical Device, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…

How Capel's Fast Turn 4 Layer Rigid-Flex PCB Boards Manufacturing Provides Reliability Solutions for Bluetooth Hearing Aid manufacturers
-Capel with 15 years of professional technical experience-
Launched Capel automotive hard-software PCB suitable for automotive lighting LED applications

Capel is proud to introduce our latest innovation in printed circuit board manufacturing for automotive lighting LED applications. Our automotive rigid-flex PCBs are designed to meet the high performance and precision requirements of the automotive industry, specifically for automotive lighting LED systems. Focused on high-quality manufacturing and advanced technology, our PCBs are designed to deliver superior performance and reliability in demanding automotive environments.

Our automotive rigid-flex board has a line width and line spacing of 0.16mm/0.11mm and a tolerance of +0.03mm. It has high-density and high-precision functions and is very suitable for complex car light LED designs. The plate thickness of 1.2+/-0.03mm ensures durability and stability, while the ENIG (Au 3uin, Ni 120uin) surface treatment provides excellent conductivity and corrosion resistance. These features make our PCBs ideally suited for the stringent requirements of automotive applications, where reliability and performance are critical.
As a leading printed circuit board manufacturer, Capel has more than 16 years of experience in the production of automotive lighting PCBs. Our expertise extends to support 1-30-layer flexible PCBs, 2-32-layer rigid-flex PCBs, and 1-60 layers rigid PCBs, reflecting our commitment to meeting diverse customer needs. Additionally, our PCBs are manufactured using cutting-edge expertise and advanced production processes, ensuring they meet the highest industry quality and performance standards.

Our automotive rigid-flex panels are not only high-performance, but also meet industry standards. They are ISO 14001:2015, ISO 9001:2015 and IATF16949:2016 certified, reflecting our dedication to quality management and continuous improvement. In addition, our PCBs carry UL and ROHS marks, indicating their compliance with safety and environmental regulations. This level of certification and compliance underscores our commitment to providing reliable and sustainable solutions for automotive LED applications.

In summary, Capel's automotive rigid-flex PCBs are ideal for manufacturers and designers seeking high-performance, high-quality and high-density automotive lighting LED system solutions. With rich experience, advanced technology and strict quality standards, we are capable of meeting the ever-changing needs of the automotive industry. Whether used for interior lighting, exterior lighting, or other automotive lighting applications, our PCBs are engineered to deliver superior performance and reliability, making them the first choice for automotive lighting solutions.
Capel Flexible PCB & Rigid-Flex PCB Process  Capability
Category Process Capability Category Process Capability
Production Type Single layer FPC / Double layers FPC
Multi-layer FPC / Aluminum PCBs
Rigid-Flex PCB
Layers Number 1-30 layers FPC
2-32 layers Rigid-FlexPCB
1-60 layers Rigid PCB
HDI Boards
Max Manufacture Size Single layer FPC 4000mm
Double layers FPC 1200mm
Multi-layers FPC 750mm
Rigid-Flex PCB 750mm
Insulating Layer
Thickness
27.5um /37.5/ 50um /65/ 75um / 100um /
125um / 150um
Board Thickness FPC 0.06mm - 0.4mm
Rigid-Flex PCB 0.25 - 6.0mm
Tolerance of PTH
Size
±0.075mm
Surface Finish Immersion Gold/Immersion
Silver/Gold Plating/Tin Plating/OSP
Stiffener FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size Min 0.4mm Min Line Space/ width 0.045mm/0.045mm
Thickness Tolerance ±0.03mm Impedance 50Ω-120Ω
Copper Foil Thickness 9um/12um / 18um / 35um / 70um/100um Impedance
Controlled
Tolerance
±10%
Tolerance of NPTH
Size
±0.05mm The Min Flush Width 0.80mm
Min Via Hole 0.1mm Implement
Standard
GB / IPC-650 / IPC-6012 / IPC-6013II /
IPC-6013III
Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism
2 Layer Flexible PCB Boards Stackup
4 Layer Rigid-Flex PCB Stackup
8 layer HDI PCBs
Testing And Inspection Equipment
Microscope Testing
AOI Inspection
2D Testing
Impedance Testing
RoHS Testing
Flying Probe
Horizontal Tester
Bending Teste
Capel provide customers customized PCB Service with 15 years of experience
Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
