Short Description:

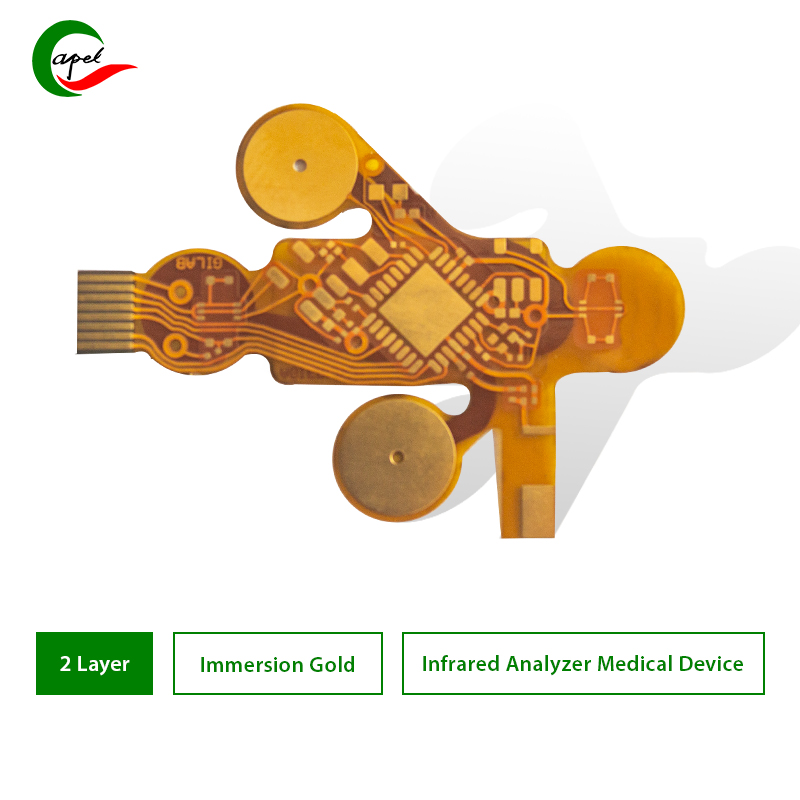

Product type:2 layer Flexible Pcb Board
Service:Custom Circuit Board,Multi Circuit,Fast Pcb Manufacturing,Pcb Assembly Manufacturer,Fast Turn Pcb Assembly,Pcb Prototype Assembly
Line width and line spacing:0.12/0.1mm
Board thickness:0.15mm
Copper Thickness:18um
Minimum Aperture:0.15mm
Flame Retardant:94V0
Surface Treatment:Immersion Gold
Resistance Welding Color:Yellow
Stiffness:PI、FR4
Application:Medical Device
Application Device:Infrared Analyzer

How Capel's Fast Flex Pcb Prototype Cheapest Pcb Manufacturer PI FR4 Immersion Gold Circuits Provides Reliability Solutions for Infrared Analyzer medical equipment manufacturers

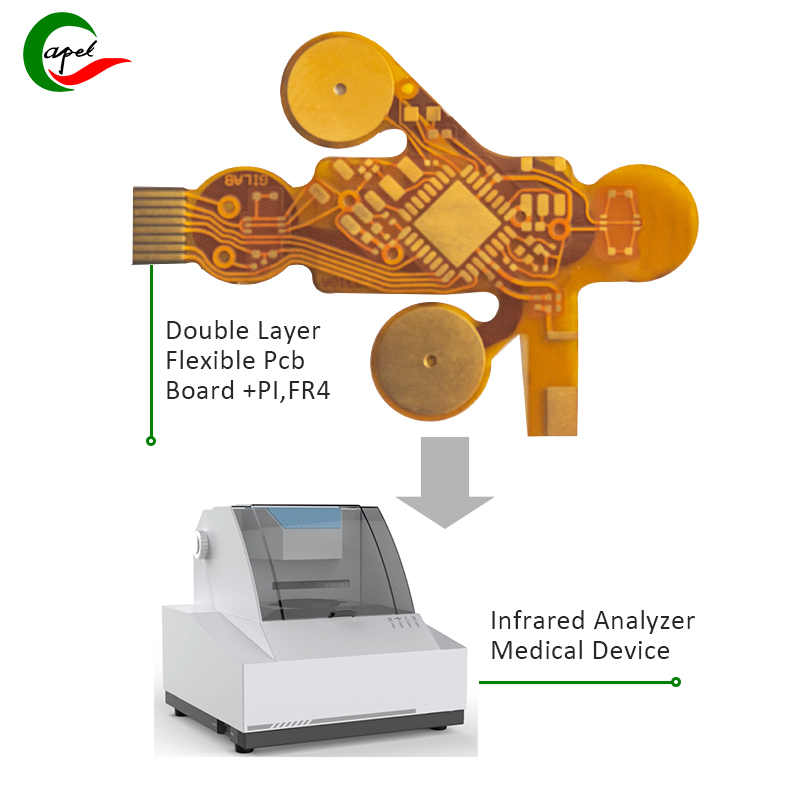

Double Sided Pcb Double Layer Flexible Pcb Board applicated in Infrared Analyzer Medical Device
-Capel with 15 years of professional technical experience-
How double-sided PCB double-layer flexible PCB board is applied to infrared analyzer medical equipment

In today's fast-paced world, technological advancements have played a major role in transforming the healthcare industry. One of these innovations is the infrared analyzer medical device. This cutting-edge technology has transformed the way medical professionals diagnose and treat patients. Behind the scenes, however, there is one important component that ensures the seamless operation of this device - the PCB, or printed circuit board.

The PCB is an essential element in any electronic device, acting as the nerves and brains that connect the various components together. As far as infrared analyzer medical equipment is concerned, the use of double-sided PCB double-layer flexible PCB board is essential for its efficient operation. In this blog post, we'll explore how this PCB type is used in an infrared analyzer medical device and its unique features, including immersion gold finish.

Product Type - Flexible PCB Board
Infrared analyzer medical devices require flexible PCB boards to accommodate their complex designs and functions. Flex PCB boards provide devices with the necessary flexibility and adaptability for optimal performance. This type of PCB design allows bending, folding and twisting without compromising the integrity of the circuit.

Number of Layers - 2 Layers/Double Layers

Double-sided PCB double-layer flexible PCB board used in infrared analyzer medical equipment consists of two layers. This configuration enables efficient routing of signals, reduces interference, and provides greater control over device functionality. With a double-sided PCB, the design possibilities are endless and more complex circuits can be seamlessly integrated.

Line Width and Line Space - 0.12/0.1mm

The line width and line spacing of PCB are the key factors to determine the electrical performance of infrared analyzer medical equipment. The PCB line width is 0.12mm, and the line spacing is 0.1mm, which ensures the accurate transmission of the whole board signal. This precision is necessary for the device to provide accurate data and reliable results.

Plate thickness - 0.15mm

The board thickness of the double-sided PCB double-layer flexible PCB board for infrared analyzer medical devices is 0.15mm. This thin and light design is critical to the overall portability and ease of use of the device. The reduced thickness also helps minimize interference and optimize device performance.

Copper Thickness - 18um

Copper is an important part of any PCB as it acts as a conductor for electrical signals. Taking infrared analyzer medical equipment as an example, the copper thickness of the double-sided PCB double-layer flexible PCB board is 18um. This optimum thickness ensures high electrical conductivity and allows the device to function flawlessly.

Minimum aperture - 0.15mm

The minimum aperture refers to the size of the hole drilled on the PCB. For infrared analyzer medical equipment, the minimum hole diameter of double-sided PCB double-layer flexible PCB board is 0.15mm. This small aperture size was chosen to support the complex circuitry of the device and prevent any signal leakage.

Flame retardant-94V0

When it comes to medical devices, safety is a top priority. The use of flame retardant materials is critical to ensuring that infrared analyzer medical devices comply with safety regulations. The double-sided PCB double-layer flexible PCB board used by the device has a flame retardant rating of 94V0, which provides fire resistance and enhances the overall safety of the device.

Surface treatment - immersion gold

To improve the performance and durability of the PCB, surface treatments are used. The double-sided PCB double-layer flexible PCB board used in the infrared analyzer medical equipment is treated with immersion gold surface treatment. This treatment not only improves the electrical conductivity of the PCB, but also provides excellent corrosion resistance and ensures long-term reliability.

Resistance welding color - yellow

The color of resistance soldering on a PCB is usually chosen for identification and aesthetic purposes. For double-sided PCB double-layer flexible PCB boards used in infrared analyzer medical equipment, the color of resistance welding is yellow. This choice provides clear visibility of solder joints and adds a touch of elegance to the overall design.

Stiffness - PI, FR4

Double-sided PCBs used in infrared analyzer medical equipment Two-layer flexible PCB boards use a combination of polyimide (PI) and FR4 materials. This hybrid design offers the perfect balance between flexibility and rigidity. The PI material provides excellent flexibility, enabling the PCB to withstand bending and twisting, while the FR4 material provides stability and supports secure placement of components.

Application - Medical Devices

Infrared analyzer medical equipment is a prime example of how advanced technology can improve medical diagnosis. It uses infrared light to analyze samples and provide medical professionals with valuable insights. Double-sided PCB Double-layer flexible PCB board ensures accurate transmission of signals, enabling the device to provide accurate and reliable results.

Application Equipment-Infrared Analyzer

As the name suggests, infrared analyzer medical equipment is mainly used as an infrared analysis tool. Its ability to detect, measure, and analyze infrared light emissions plays a vital role in a variety of medical applications. By utilizing a double-sided PCB double-layer flexible PCB board, the device can efficiently capture and interpret infrared signals to provide valuable information to medical practitioners.

In summary, the use of double-sided PCB double-layer flexible PCB boards is essential for optimal functionality of infrared analyzer medical devices. Its unique characteristics, such as immersion gold surface treatment, line width, line spacing, board thickness, copper thickness, flame retardancy, ensure the accuracy, durability and safety of the device. This innovative PCB technology combined with the device's infrared analysis capabilities has contributed significantly to the advancement of medical diagnostics and patient care.
Capel Flexible PCB & Rigid-Flex PCB Process  Capability
CategoryProcess CapabilityCategoryProcess Capability
Production TypeSingle layer FPC / Double layers FPC
Multi-layer FPC / Aluminum PCBs
Rigid-Flex PCB
Layers Number1-30 layers FPC
2-32 layers Rigid-FlexPCB
1-60 layers Rigid PCB
HDI Boards
Max Manufacture SizeSingle layer FPC 4000mm
Double layers FPC 1200mm
Multi-layers FPC 750mm
Rigid-Flex PCB 750mm
Insulating Layer
Thickness
27.5um /37.5/ 50um /65/ 75um / 100um /
125um / 150um
Board ThicknessFPC 0.06mm - 0.4mm
Rigid-Flex PCB 0.25 - 6.0mm
Tolerance of PTH
Size
±0.075mm
Surface FinishImmersion Gold/Immersion
Silver/Gold Plating/Tin Plating/OSP
StiffenerFR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice SizeMin 0.4mmMin Line Space/ width0.045mm/0.045mm
Thickness Tolerance±0.03mmImpedance50Ω-120Ω
Copper Foil Thickness9um/12um / 18um / 35um / 70um/100umImpedance
Controlled
Tolerance
±10%
Tolerance of NPTH
Size
±0.05mmThe Min Flush Width0.80mm
Min Via Hole0.1mmImplement
Standard
GB / IPC-650 / IPC-6012 / IPC-6013II /
IPC-6013III
Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism
2 Layer Flexible PCB Boards Stackup
4 Layer Rigid-Flex PCB Stackup
8 layer HDI PCBs
Testing And Inspection Equipment
Microscope Testing
AOI Inspection
2D Testing
Impedance Testing
RoHS Testing
Flying Probe
Horizontal Tester
Bending Teste
Capel provide customers customized PCB Service with 15 years of experience
Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
