Short Description:

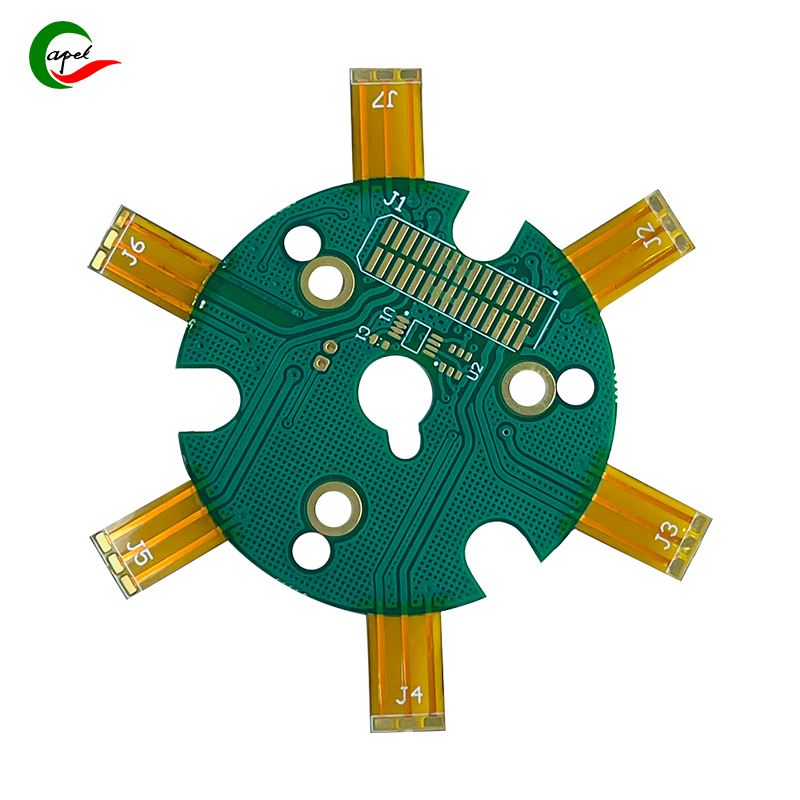

Product Type:2 layer Rigid-Flex PCB

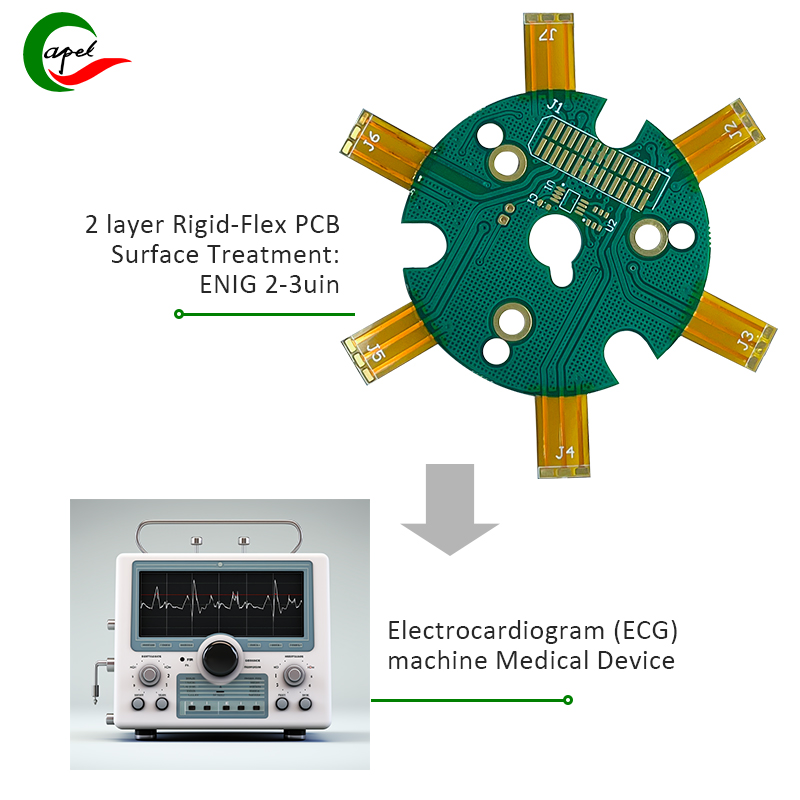

Applications:Electrocardiogram (ECG) Machine Medical Device
Line width and line spacing:0.15mm/0.15mm
Board thickness:0.8mm+-10%
Layers Stackup:1+1
Minimum Aperture:0.2mm
Copper Hole Thickness:35um
Surface Treatment:ENIG 2-3uin
Impedance:/
Warpage:≦0.5%
Tolerance Accuracy:±0.1MM

Capel’s Service:

Support Custom 1-30 Layer FPC Flexible PCB,2-32 Layer Rigid-Flex Circuit Boards,1-60 Layer Rigid PCB,HDI PCB,Reliable Quick Turn PCB Prototyping,Fast Turn SMT PCB Assembly

Industry We Service:

Medical Device, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…

How Capel's Quick Turn 2 Layer Rigid-Flex PCB Stackup Making Provides Reliability Solutions for Electrocardiogram (ECG) machine Medical Device manufacturers
-Capel with 15 years of professional technical experience-
Introducing Quick Turn 2-layer rigid-flex PCB, specially designed for electrocardiogram (ECG) machines in the medical device industry. This cutting-edge PCB offers superior performance and reliability, making it an indispensable component in the development of advanced medical devices.

The PCB's line width and line spacing are 0.15mm/0.15mm, ensuring precise and accurate signal transmission, which is crucial for electrocardiograph machines. The plate thickness is 0.8mm and the tolerance accuracy is ±0.1mm, ensuring optimal functionality and durability. 1+1 layer stacking and 0.2mm minimum aperture provide design versatility and ease of assembly.

Our Quick Turn 2-layer rigid-flex PCBs are manufactured using premium materials and advanced technology to ensure superior performance in demanding medical environments. The 35um copper hole thickness and ENIG 2-3uin surface treatment ensure excellent conductivity and corrosion resistance, maximizing the service life of the PCB.

The PCB is unique in that it has less than 0.5% warpage. This feature ensures that the PCB remains flat and prevents any misalignment, ensuring accurate and consistent results. In addition, it provides excellent impedance control, ensuring stable signal transmission and reducing interference.

Our Quick Turn 2-layer rigid-flex PCB is designed specifically for electrocardiographs and provides superior accuracy and reliability. Its fast turnaround production capabilities enable us to meet tight project deadlines, ensuring timely delivery without compromising on quality.

At Shenzhen Capel Technology Co., Ltd., we are committed to providing high-quality, reliable PCB solutions to the medical device industry. Trust our expertise and experience gained during many years of serving international clients. Our team of skilled professionals ensures that every PCB meets the highest standards and adheres to strict quality control measures.

Choose our Quick Turn 2-layer rigid-flex PCB for your electrocardiogram (ECG) machine and experience unparalleled performance and longevity. Contact us today to discuss your needs and start incorporating this superior PCB into your next medical device innovation.
Capel Flexible PCB & Rigid-Flex PCB Process  Capability
Category Process Capability Category Process Capability
Production Type Single layer FPC / Double layers FPC
Multi-layer FPC / Aluminum PCBs
Rigid-Flex PCB
Layers Number 1-30 layers FPC
2-32 layers Rigid-FlexPCB
1-60 layers Rigid PCB
HDI Boards
Max Manufacture Size Single layer FPC 4000mm
Double layers FPC 1200mm
Multi-layers FPC 750mm
Rigid-Flex PCB 750mm
Insulating Layer
Thickness
27.5um /37.5/ 50um /65/ 75um / 100um /
125um / 150um
Board Thickness FPC 0.06mm - 0.4mm
Rigid-Flex PCB 0.25 - 6.0mm
Tolerance of PTH
Size
±0.075mm
Surface Finish Immersion Gold/Immersion
Silver/Gold Plating/Tin Plating/OSP
Stiffener FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size Min 0.4mm Min Line Space/ width 0.045mm/0.045mm
Thickness Tolerance ±0.03mm Impedance 50Ω-120Ω
Copper Foil Thickness 9um/12um / 18um / 35um / 70um/100um Impedance
Controlled
Tolerance
±10%
Tolerance of NPTH
Size
±0.05mm The Min Flush Width 0.80mm
Min Via Hole 0.1mm Implement
Standard
GB / IPC-650 / IPC-6012 / IPC-6013II /
IPC-6013III
Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism
2 Layer Flexible PCB Boards Stackup
4 Layer Rigid-Flex PCB Stackup
8 layer HDI PCBs
Testing And Inspection Equipment
Microscope Testing
AOI Inspection
2D Testing
Impedance Testing
RoHS Testing
Flying Probe
Horizontal Tester
Bending Teste
Capel provide customers customized PCB Service with 15 years of experience
Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
