Short Description:

Product Type:10 layer Rigid Flexible PCB

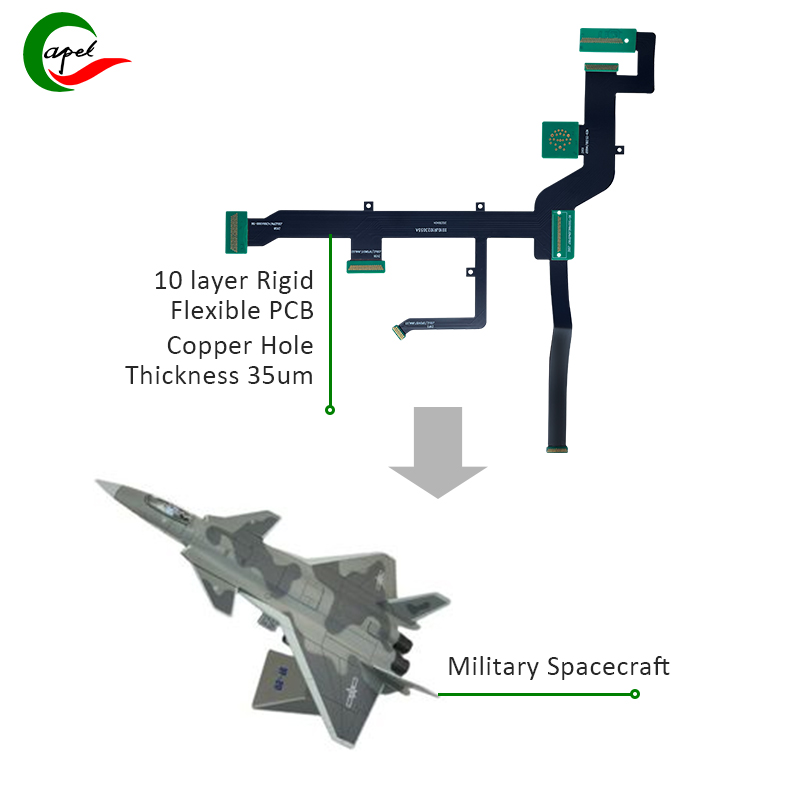

Applications:Military Spacecraft
Line width and line spacing:0.1mm/0.1mm
Board thickness:2.0MM+-10%
Layers Stackup:4+2+4
Minimum Aperture:0.2mm
Copper Hole Thickness:35um
Surface Treatment:ENIG 2-3uin

Impedance:50 ohms-+10%
Warpage:≦0.5%

Tolerance Accuracy:±0.1MM

Capel’s Service:

Support Custom 1-30 Layer FPC Flexible PCB,2-32 Layer Rigid-Flex Circuit Boards,1-60 Layer Rigid PCB,HDI PCB,Reliable Quick Turn PCB Prototyping,Fast Turn SMT PCB Assembly

Industry We Service:

Medical Device, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…

How Capel's Custom 10 Layer Rigid-Flex Circuits Quick Turn Pcb Manufacturers Provides Reliability Solutions for Military Spacecraft manufacturers
-Capel with 15 years of professional technical experience-
Introducing our latest custom 10-layer rigid-flex circuit, the ultimate solution for military spacecraft applications. These PCBs are developed using advanced technology and expert craftsmanship to meet the highest industry standards.

Our 10-layer rigid-flex PCBs are engineered to provide superior performance and reliability under the harsh conditions of military spacecraft. With a board thickness of 2.0 mm, these PCBs offer superior durability and stability, ensuring optimal functionality even in extreme environments.

0.1mm/0.1mm line width and line spacing ensure precise signal transmission, while 4+2+4 layer stacking enables efficient wiring and maximum space utilization. Minimum hole diameter of 0.2mm ensures accurate component placement and secure connections.

We understand the critical importance of impedance in military spacecraft applications, which is why our 10-layer rigid-flex PCB has an impedance control of 50 ohms with a tolerance accuracy of ±10%. This guarantees seamless signal transmission and optimal performance for mission-critical systems.

The copper hole thickness of 35um, combined with the ENIG 2-3uin surface treatment, ensures excellent conductivity and corrosion resistance. This increases the overall reliability and longevity of the PCB, minimizing the risk of failure in mission-critical situations.

Another key feature of our 10-layer rigid-flex PCB is its low warpage of ≤0.5%, which eliminates any potential stress on the component and allows for easy integration into military spacecraft systems. Precise dimensions with a tolerance of ±0.1mm ensure perfect fit and compatibility with other components.

As a fast turnaround PCB manufacturer, we understand the urgency of military applications. Our team is dedicated to delivering these custom 10-layer rigid-flex circuits in the shortest possible turnaround time without compromising quality or performance.

Partner with us on your military spacecraft project and experience the unparalleled quality, durability and reliability of our 10-layer rigid-flex PCBs. We are committed to providing best-in-class solutions that meet the unique requirements of the aerospace industry and exceed your expectations. Contact us today to discuss your specific needs and specifications.
Capel Flexible PCB & Rigid-Flex PCB Process  Capability
Category Process Capability Category Process Capability
Production Type Single layer FPC / Double layers FPC
Multi-layer FPC / Aluminum PCBs
Rigid-Flex PCB
Layers Number 1-30 layers FPC
2-32 layers Rigid-FlexPCB
1-60 layers Rigid PCB
HDI Boards
Max Manufacture Size Single layer FPC 4000mm
Double layers FPC 1200mm
Multi-layers FPC 750mm
Rigid-Flex PCB 750mm
Insulating Layer
Thickness
27.5um /37.5/ 50um /65/ 75um / 100um /
125um / 150um
Board Thickness FPC 0.06mm - 0.4mm
Rigid-Flex PCB 0.25 - 6.0mm
Tolerance of PTH
Size
±0.075mm
Surface Finish Immersion Gold/Immersion
Silver/Gold Plating/Tin Plating/OSP
Stiffener FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size Min 0.4mm Min Line Space/ width 0.045mm/0.045mm
Thickness Tolerance ±0.03mm Impedance 50Ω-120Ω
Copper Foil Thickness 9um/12um / 18um / 35um / 70um/100um Impedance
Controlled
Tolerance
±10%
Tolerance of NPTH
Size
±0.05mm The Min Flush Width 0.80mm
Min Via Hole 0.1mm Implement
Standard
GB / IPC-650 / IPC-6012 / IPC-6013II /
IPC-6013III
Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism
2 Layer Flexible PCB Boards Stackup
4 Layer Rigid-Flex PCB Stackup
8 layer HDI PCBs
Testing And Inspection Equipment
Microscope Testing
AOI Inspection
2D Testing
Impedance Testing
RoHS Testing
Flying Probe
Horizontal Tester
Bending Teste
Capel provide customers customized PCB Service with 15 years of experience
Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
