Short Description:

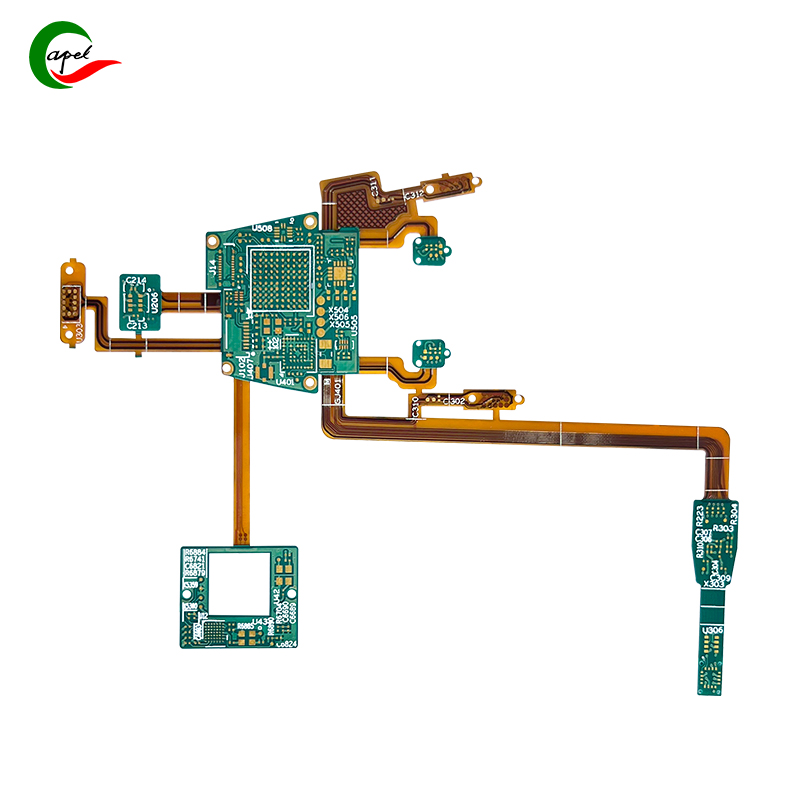

Product Type:4 layers and 1 level Rigid-Flex Circuit Boards
Applications:Ventilator Medical Devices
Line width and line spacing:0.075MM/0.075MM
Board thickness:1.0mm+-10%
Layers Stackup:1+2+1
Minimum Aperture:0.15mm
Copper Hole Thickness:35um
Surface Treatment:ENIG 2-3uin
Impedance:100 ohms-+10%
Warpage:≦0.5%
Tolerance Accuracy:±0.1MM

Capel’s Service:

Support Custom 1-30 Layer FPC Flexible PCB,2-32 Layer Rigid-Flex Circuit Boards,1-60 Layer Rigid PCB,HDI PCB,Reliable Quick Turn PCB Prototyping,Fast Turn SMT PCB Assembly

Industry We Service:

Medical Device, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…

How Capel's 4 Layer Rigid-Flex Circuit Boards Rapid PCB Prototype Fab Provides Reliability Solutions for Ventilator Medical Devices manufacturers
-Capel with 15 years of professional technical experience-

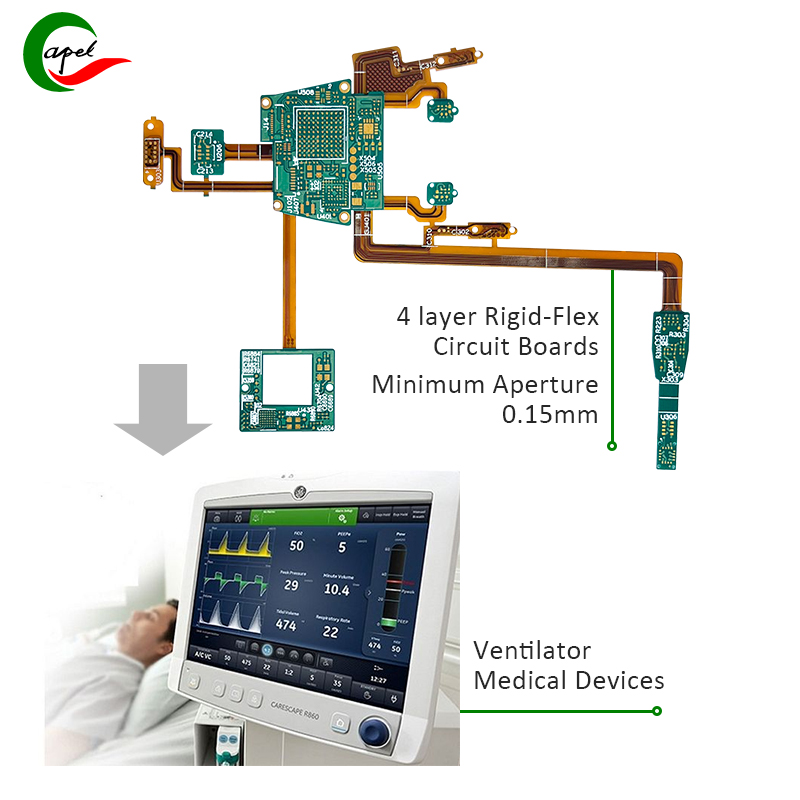

Introducing our latest products in the field of printed circuit boards - 4-layer and 1 level rigid-flex circuit boards. Designed specifically for ventilator medical devices, these boards provide a seamless and reliable solution for critical medical equipment.

Our rigid-flex circuit boards feature 0.075mm/0.075mm line width and space, ensuring precise, efficient performance. With a board thickness of 1.0mm ± 10%, these boards provide the perfect balance between durability and flexibility, making them ideal for a variety of applications.

The 1+2+1 layer stacking enhances functionality and compactness, allowing the board to seamlessly integrate into any medical device. Our circuit boards have a minimum aperture size of 0.15 mm, providing superior accuracy in transmitting electrical signals.

The thickness of the copper holes in our rigid-flex circuit boards is 35um, ensuring excellent conductivity and electronic performance. The ENIG 2-3uin surface treatment further enhances the durability and reliability of these boards, providing resistance to corrosion and oxidation.

To ensure optimal functionality and performance, our rigid-flex circuit boards offer 100 ohms ± 10% impedance. This feature is critical to maintaining signal integrity, especially in sensitive medical equipment.

To further ensure seamless integration, our circuit boards have a warpage rate of less than 0.5%. This ensures they fit perfectly and function properly in any device they are integrated into.

Our rigid-flex circuit boards have a tolerance accuracy of ±0.1 mm and are manufactured with extreme precision and attention to detail. This high level of precision ensures each board meets the exact specifications required for reliable performance.

Our 4-layer and 1 level rigid-flex circuit boards are perfect choices for rapid PCB prototyping of ventilator medical devices. With impeccable specifications and advanced features, these motherboards offer the highest level of functionality and performance.
Capel Flexible PCB & Rigid-Flex PCB Process  Capability
Category Process Capability Category Process Capability
Production Type Single layer FPC / Double layers FPC
Multi-layer FPC / Aluminum PCBs
Rigid-Flex PCB
Layers Number 1-30 layers FPC
2-32 layers Rigid-FlexPCB
1-60 layers Rigid PCB
HDI Boards
Max Manufacture Size Single layer FPC 4000mm
Double layers FPC 1200mm
Multi-layers FPC 750mm
Rigid-Flex PCB 750mm
Insulating Layer
Thickness
27.5um /37.5/ 50um /65/ 75um / 100um /
125um / 150um
Board Thickness FPC 0.06mm - 0.4mm
Rigid-Flex PCB 0.25 - 6.0mm
Tolerance of PTH
Size
±0.075mm
Surface Finish Immersion Gold/Immersion
Silver/Gold Plating/Tin Plating/OSP
Stiffener FR4 / PI / PET / SUS / PSA/Alu
Semicircle Orifice Size Min 0.4mm Min Line Space/ width 0.045mm/0.045mm
Thickness Tolerance ±0.03mm Impedance 50Ω-120Ω
Copper Foil Thickness 9um/12um / 18um / 35um / 70um/100um Impedance
Controlled
Tolerance
±10%
Tolerance of NPTH
Size
±0.05mm The Min Flush Width 0.80mm
Min Via Hole 0.1mm Implement
Standard
GB / IPC-650 / IPC-6012 / IPC-6013II /
IPC-6013III
Capel manufactures customized high-precision Rigid Flexible Circuit Board / Flexible PCB / HDI PCB with 15 years of experience with our professionalism
2 Layer Flexible PCB Boards Stackup
4 Layer Rigid-Flex PCB Stackup
8 layer HDI PCBs
Testing And Inspection Equipment
Microscope Testing
AOI Inspection
2D Testing
Impedance Testing
RoHS Testing
Flying Probe
Horizontal Tester
Bending Teste
Capel provide customers customized PCB Service with 15 years of experience
Owning 3 factories for Flexible PCB&Rigid-Flex PCB, Rigid PCB, DIP/SMT Assembly;
300+Engineers Provide technical support for Pre-sales and after-sales online;
1-30 layers FPC, 2-32 layers Rigid-FlexPCB, 1-60 layers Rigid PCB
HDI Boards, Flexible PCB (FPC), Rigid-Flex PCBs, Multilayer PCBs, Single-sided PCB, Double-Sided Circuit Boards, Hollow Boards, Rogers PCB, rf PCB, Metal Core PCB, Special Process Boards, Ceramic PCB, Aluminum PCB, SMT & PTH Assembly, PCB Prototype Service.
Provide 24-hour PCB Prototyping service,Small Batches of circuit boards will be delivered in 5-7 days, Mass Production of PCB boards will be delivered in 2-3 weeks;
Industries we service: Medical Devices, IOT, TUT, UAV, Aviation, Automotive, Telecommunications, Consumer Electronics, Military, Aerospace, Industrial Control, Artificial Intelligence, EV, etc…
Our Production Capacity:
FPC and Rigid-Flex PCBs production capacity can reach more than 150000sqm per month,
PCB production capacity can reach 80000sqm per month,
PCB Assembling capacity at 150,000,000 components per month.
Our teams of engineers and researchers are dedicated to fulfilling your requirements with precision and professionalism.
